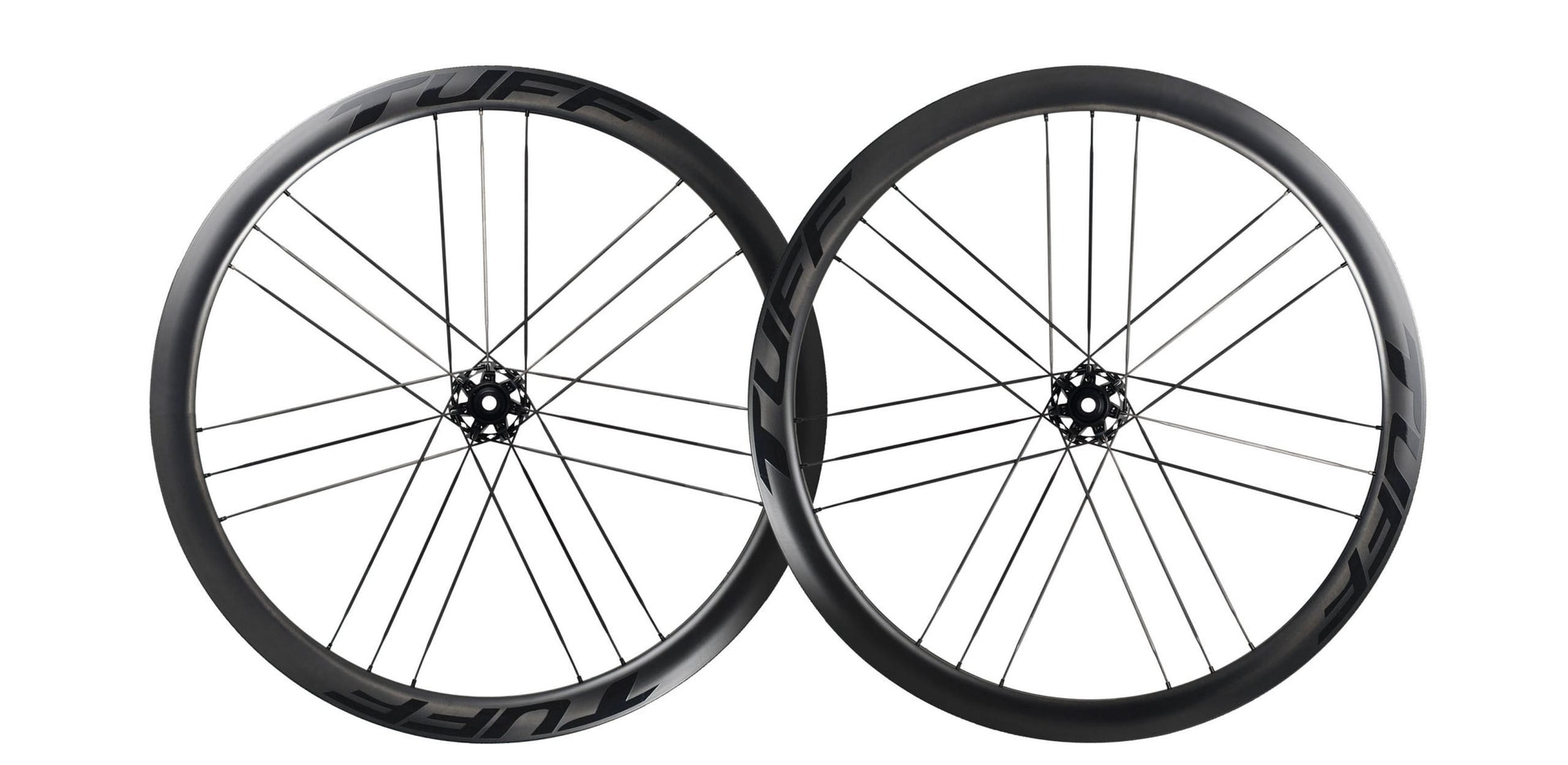

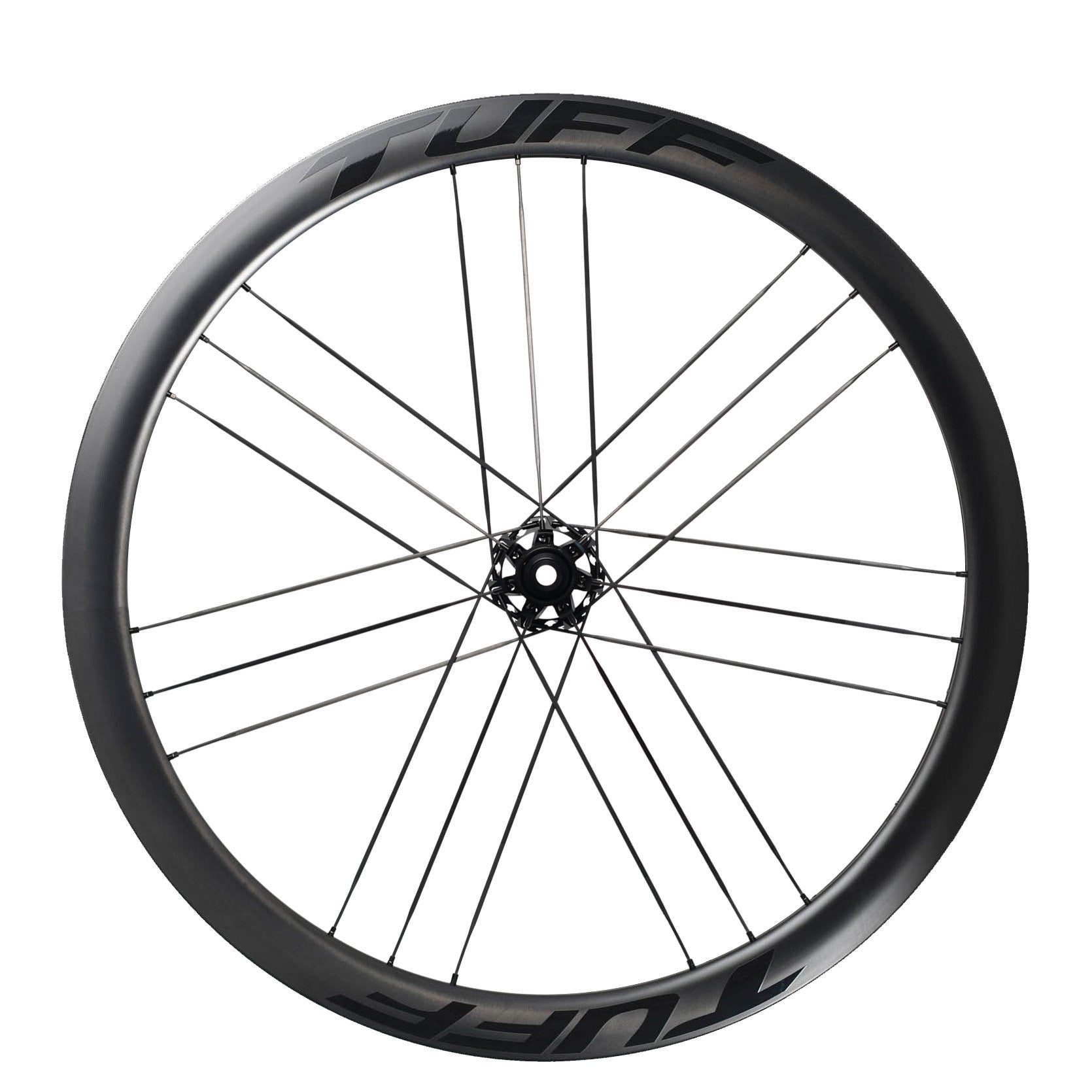

TUFF HELIUM G3 46 Wheels

Powerful “all-rounder” lightweight clinchers that balance aero with climbing ability. Whether you're a seasoned racer or a passionate enthusiast seeking the pinnacle of cycling performance, the Tuff Helium G3 Carbon Wheels deliver an unparalleled riding experience. Elevate your cycling game with these cutting-edge wheels that redefine what's possible.

The TUFF HELIUM G3 spoke geometry increases lateral rigidity, improves energy transfer, reduces the stress on the spokes, leading to a more durable wheelset.

G3 refers to groups of three parallel straight-pull spokes, which are arranged in a 2:1 ratio, so one side of the wheel has twice as many spokes as the other. This allows them to counteract the uneven spoke tensons caused by the usual asymmetric dishing of wheels.


SPECIFICATIONS:

WEIGHT PAIR
1270g

WEIGHT FRONT
585g

WEIGHT REAR
685g

RIM
700c Carbon Clincher Disc Specific

RIM WEIGHT
Front: 390g, Rear 390g

RIM DEPTH
Front: 46mm, Rear 46mm

INTERNAL RIM WIDTH
21mm

ERD
419/419mm

OFFSET
2.6mm

ROUNDNESS
0.2mm

TUBELESS
Compatible

BALANCED
Yes

CARBON FINISH
UD Carbon Fiber

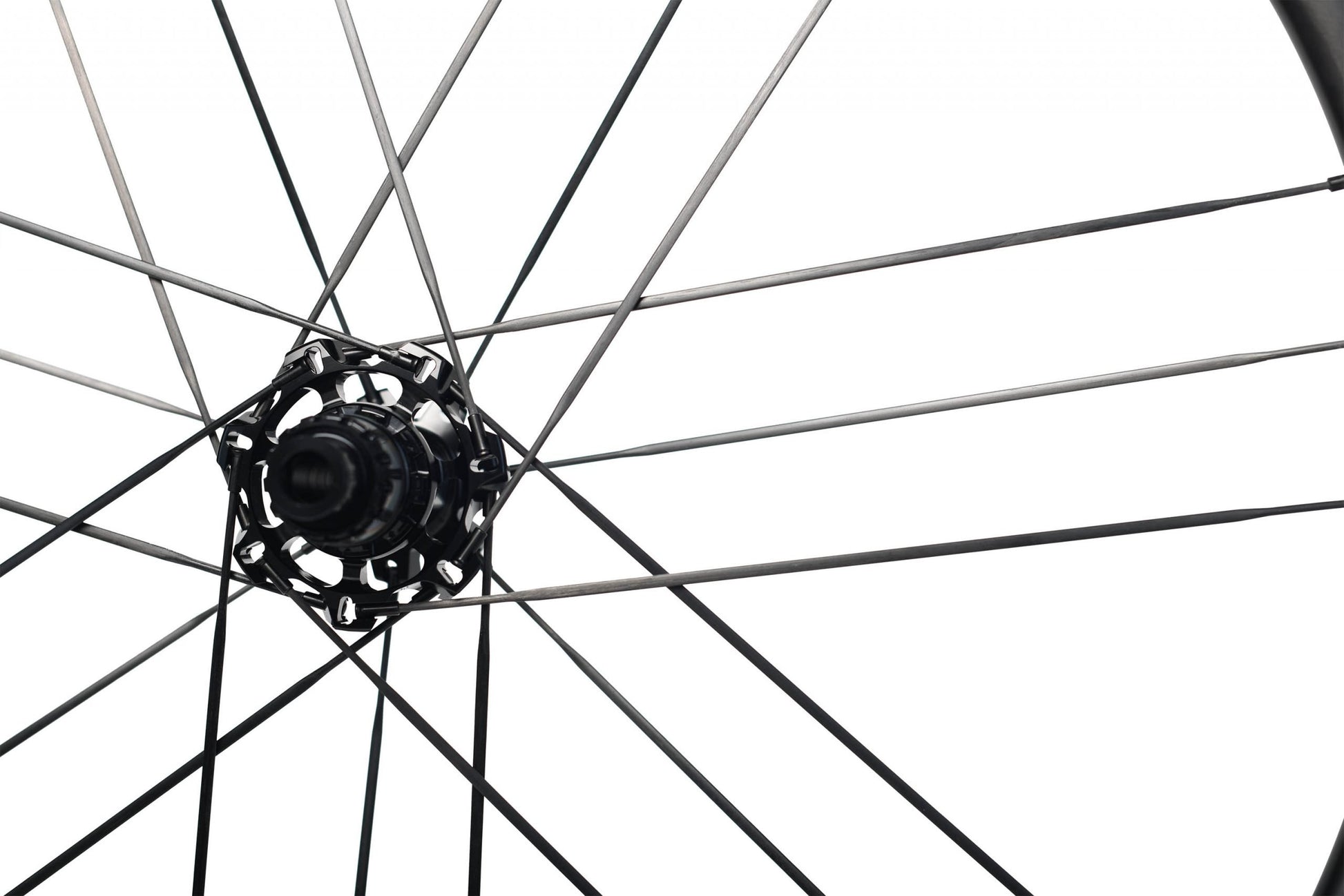

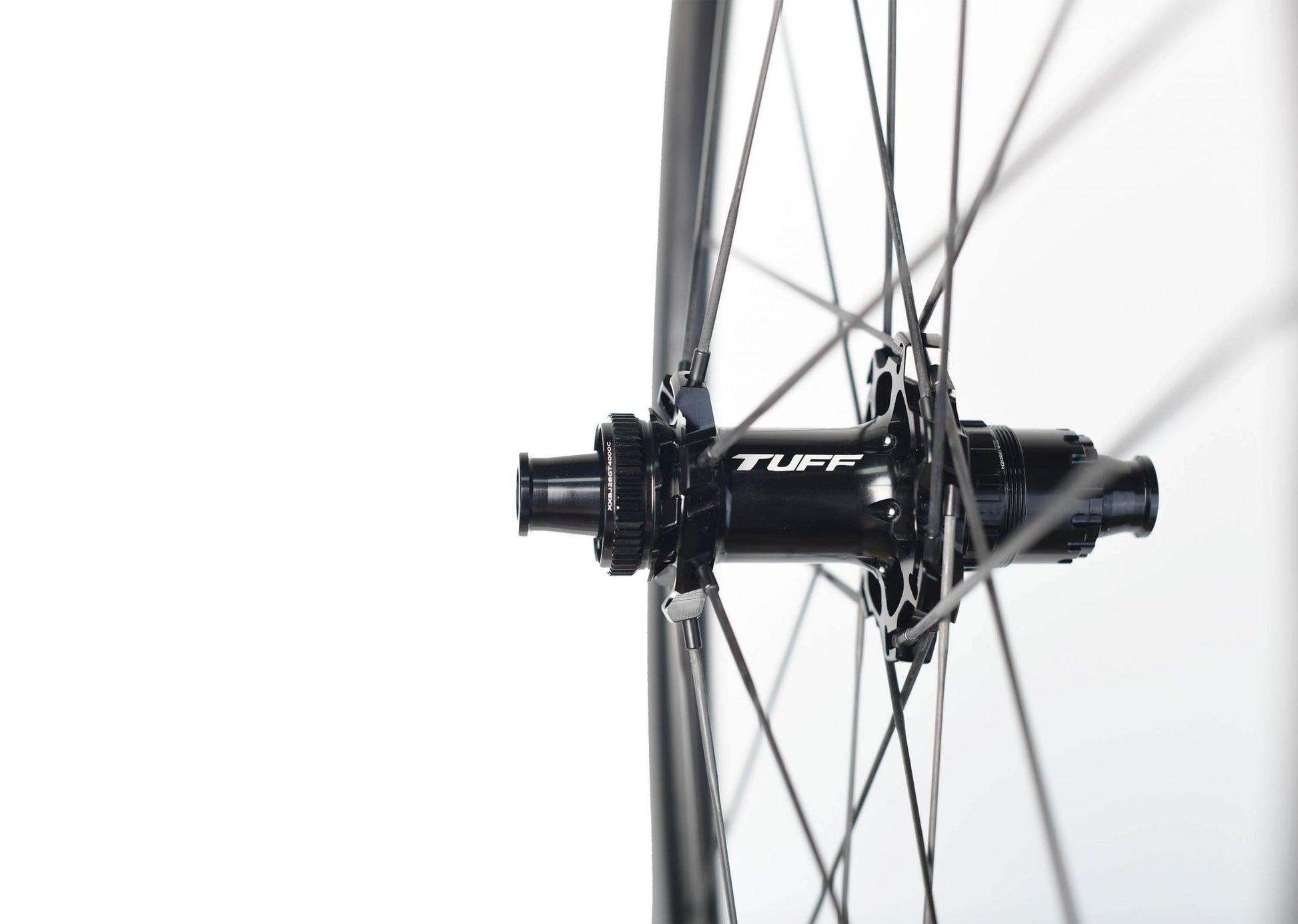

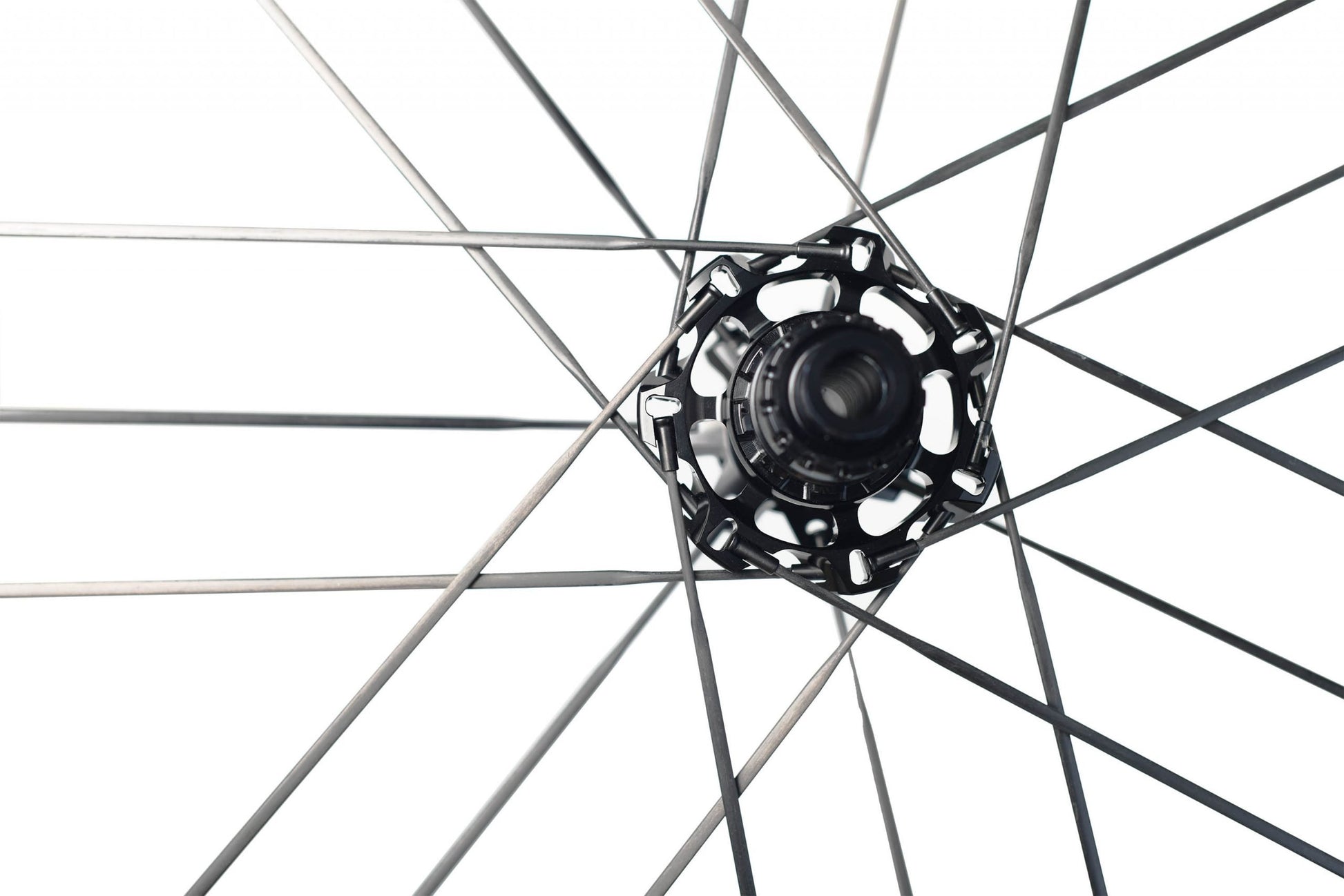

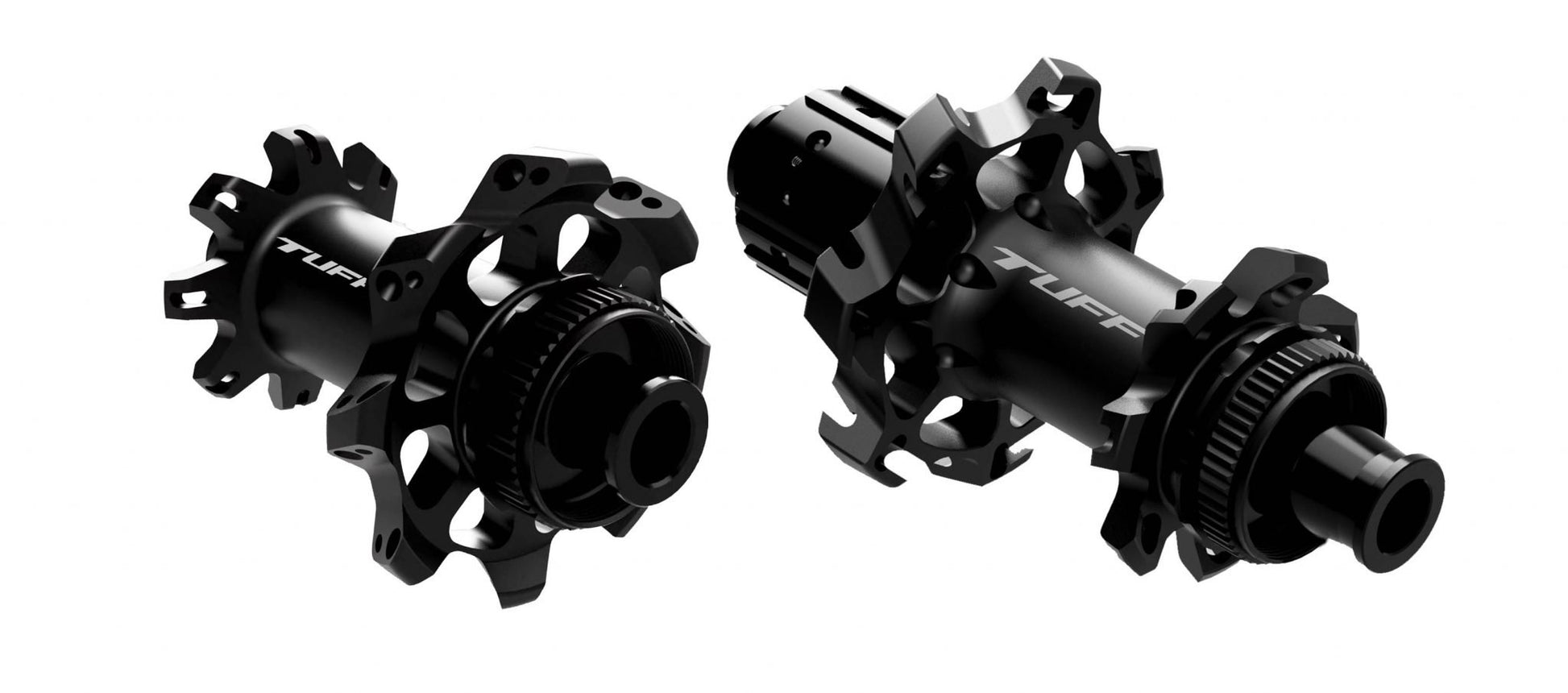

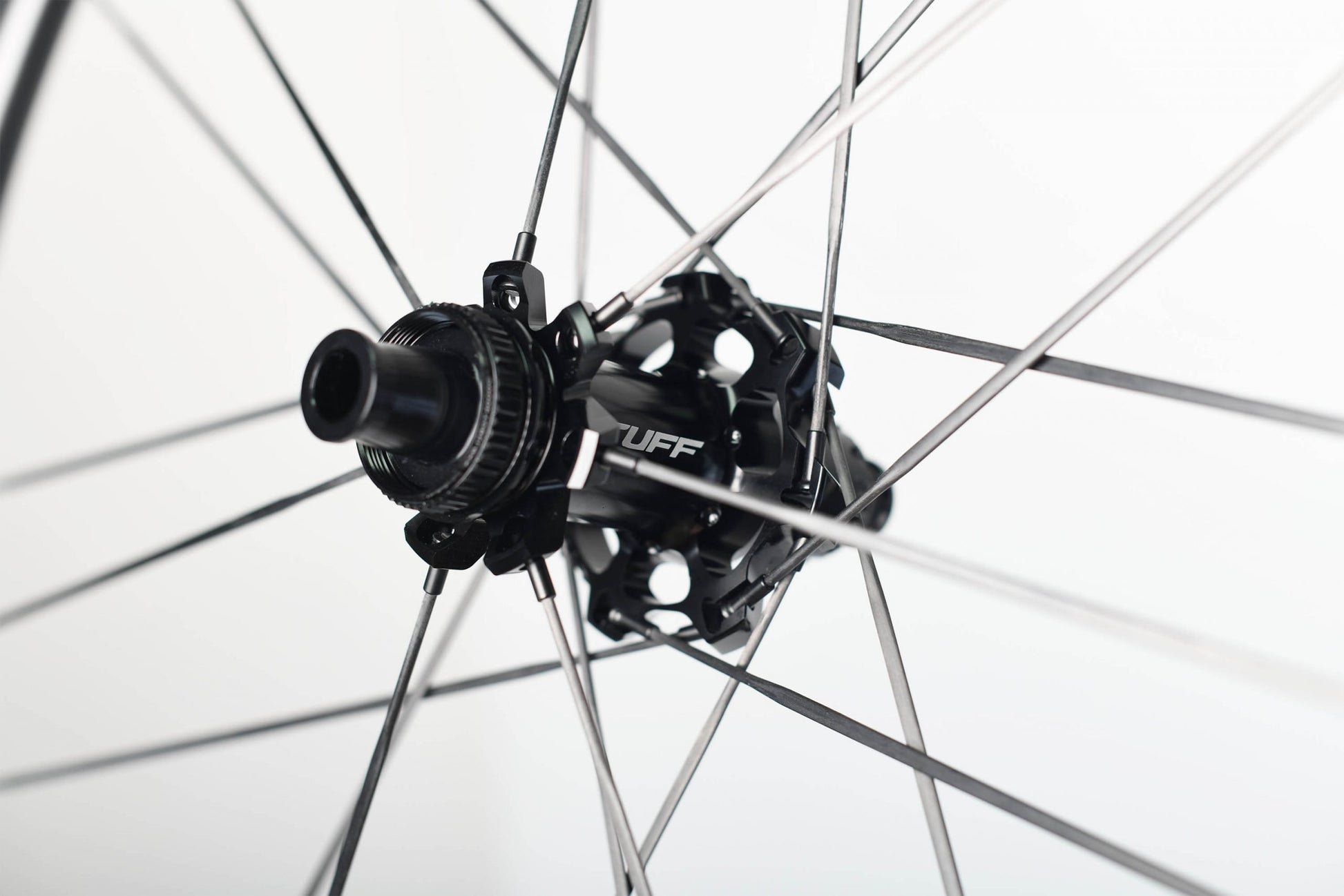

HUB
TUFF G3 54T Ratchet hub

BEARING SIZE
R 6802 (2) / 15267 (4)

BEARING TYPE
DT Steel Bearing

FREE HUB
Shimano/Sram XDR/Campagnolo

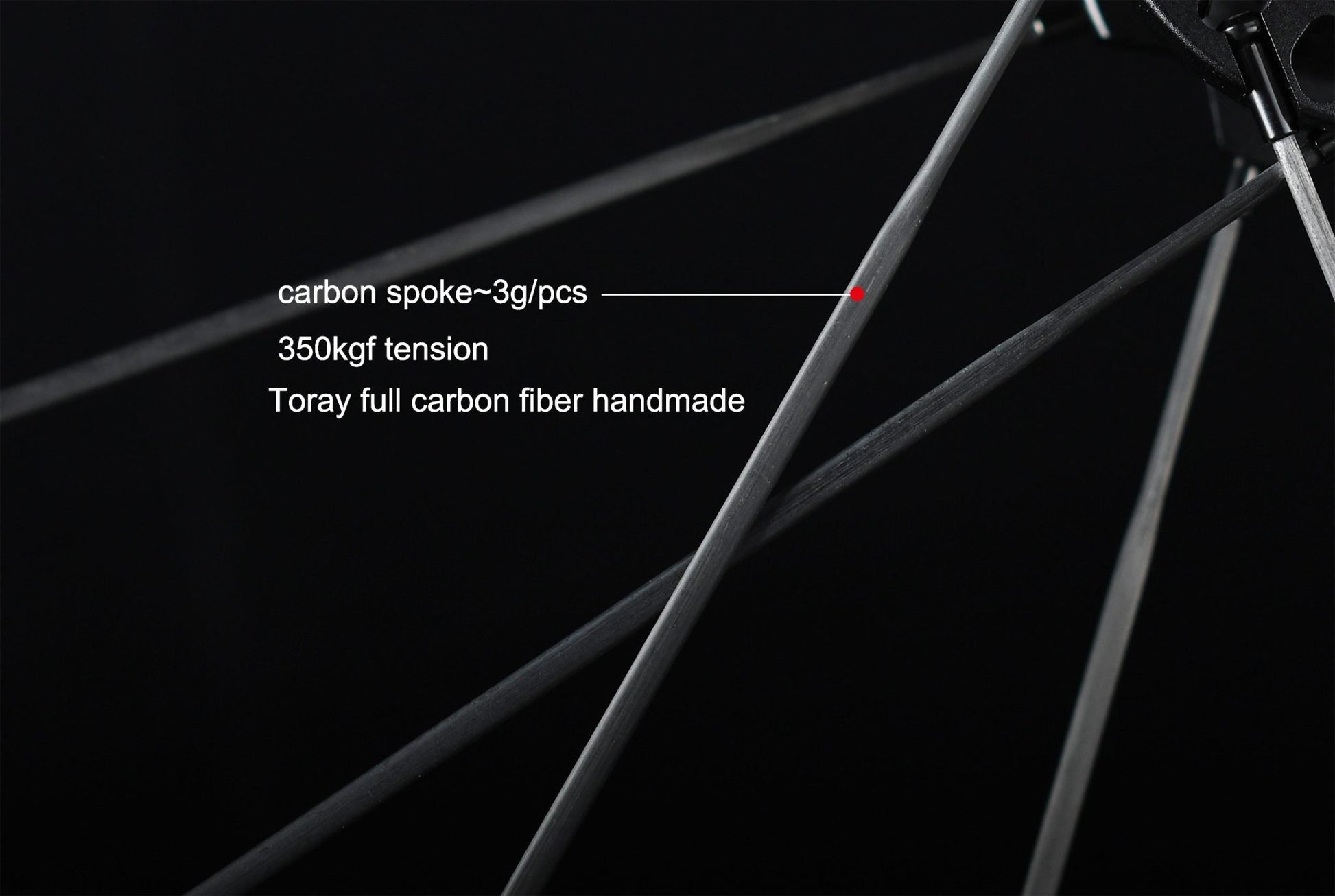

SPOKES (BLACK)
Carbon Fiber Straightpull

SPOKE COUNT
Front: 21, Rear: 21

SPOKE PATTERN
Front: G3 3X, Rear: G3 3X

MAX SPOKE TENSION(KGF)
F 130/105, R 95/130

NIPPLES
Aluminum Nipples

RIDER WEIGHT LIMIT
242lbs / 110kg

INCLUDED ACCESSORIES
2pcs Carbon Fiber spoke/Nipples/Valves

HUB AXLE
12×100 TA, 12*142TA

ROTOR COMPATIBILITY
Center Lock
