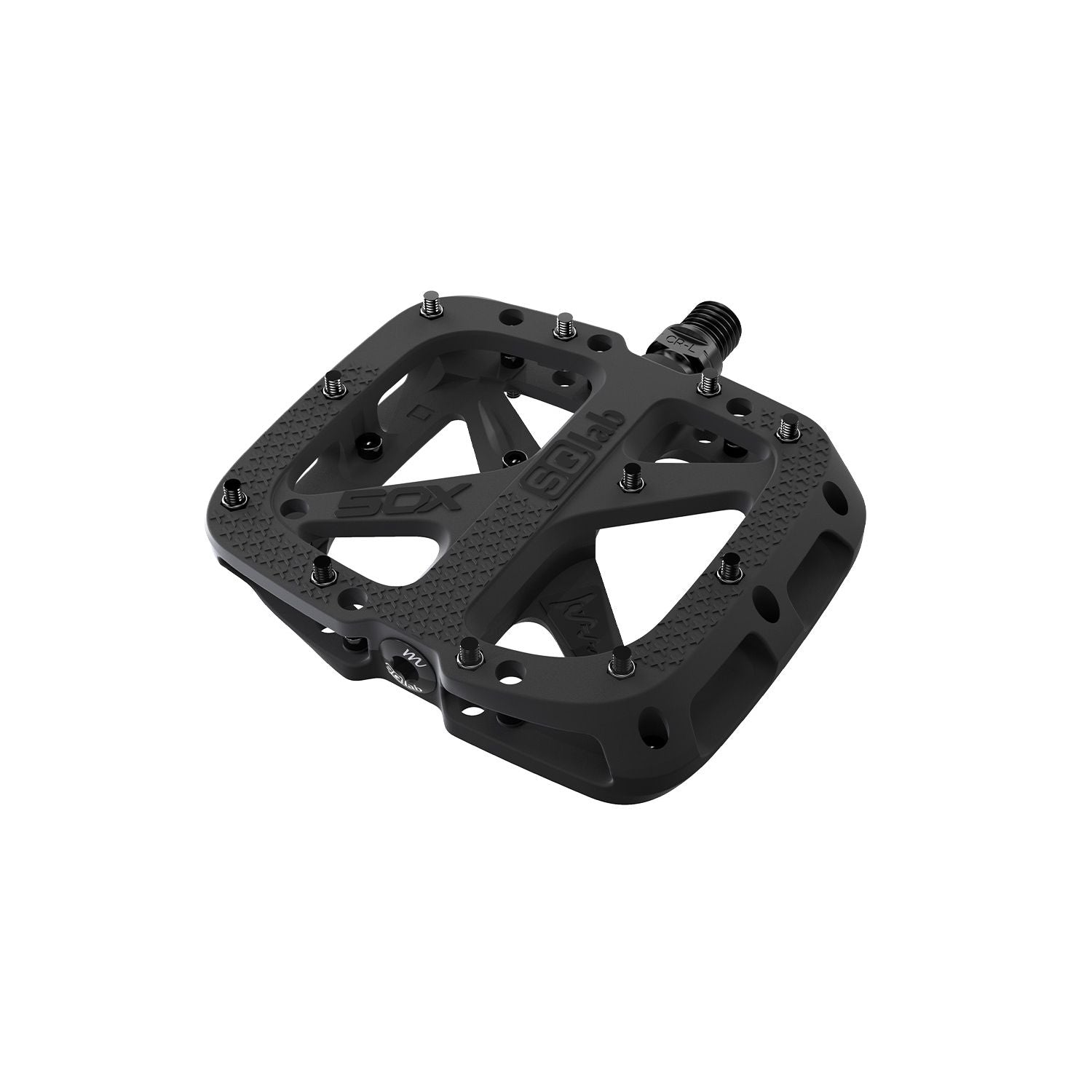

SQlab 5OX Pedals

Reliable and robust
Why composite- why not? The high-quality 5OX plastic pedal is in no way inferior to the same version made of aluminum in terms of weight and durability. In hard contacts with stones and rocks, for example, the material can give way and has usually withstood more than the aluminum version in our tests. For this reason, we rely on composite and do not offer an aluminum version. Important to us is the bearing - we have installed the best and most durable bearings.

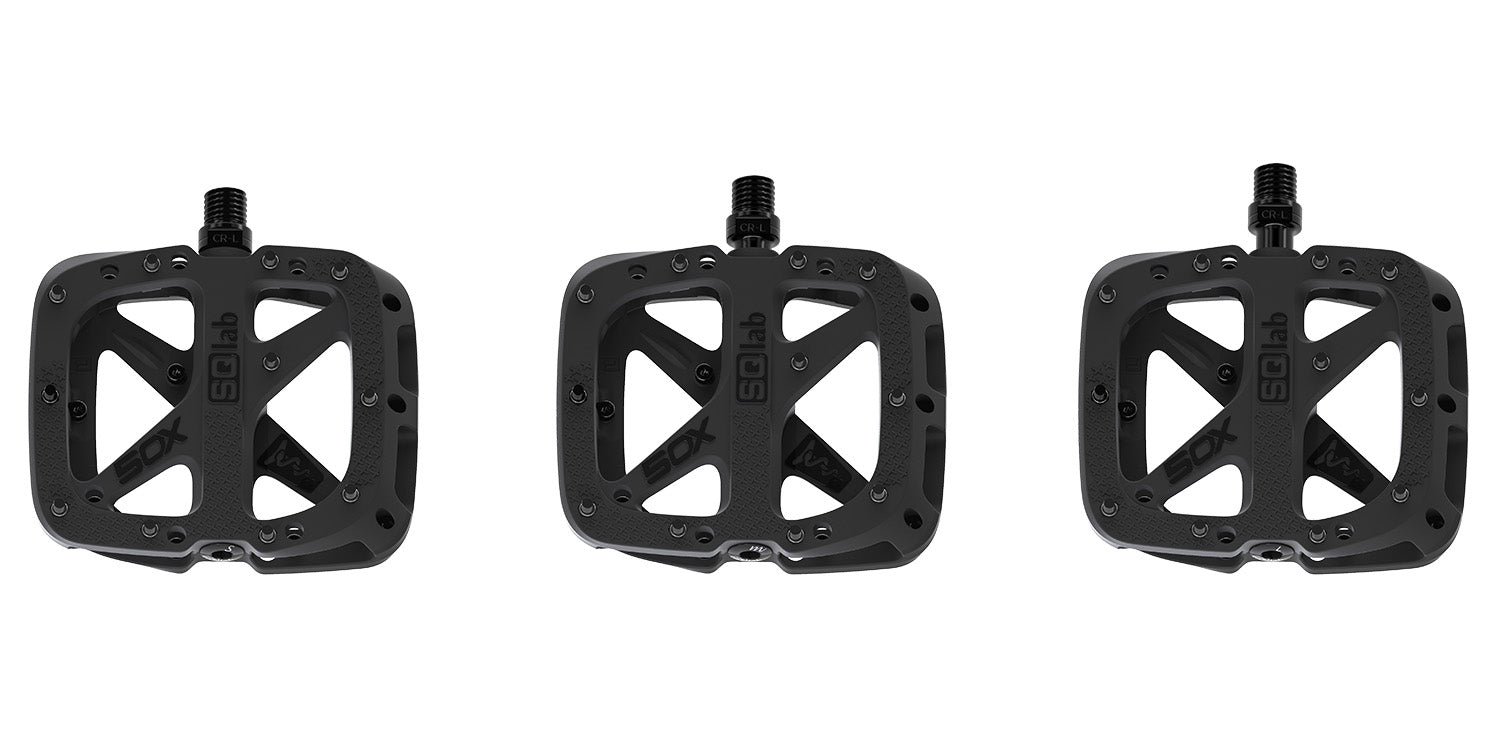

The three different axle lengths provide a physiologically natural foot position on the pedal. Suitable for larger feet, a V-shaped foot position or larger sit bone distances, which usually require a higher Q-factor.

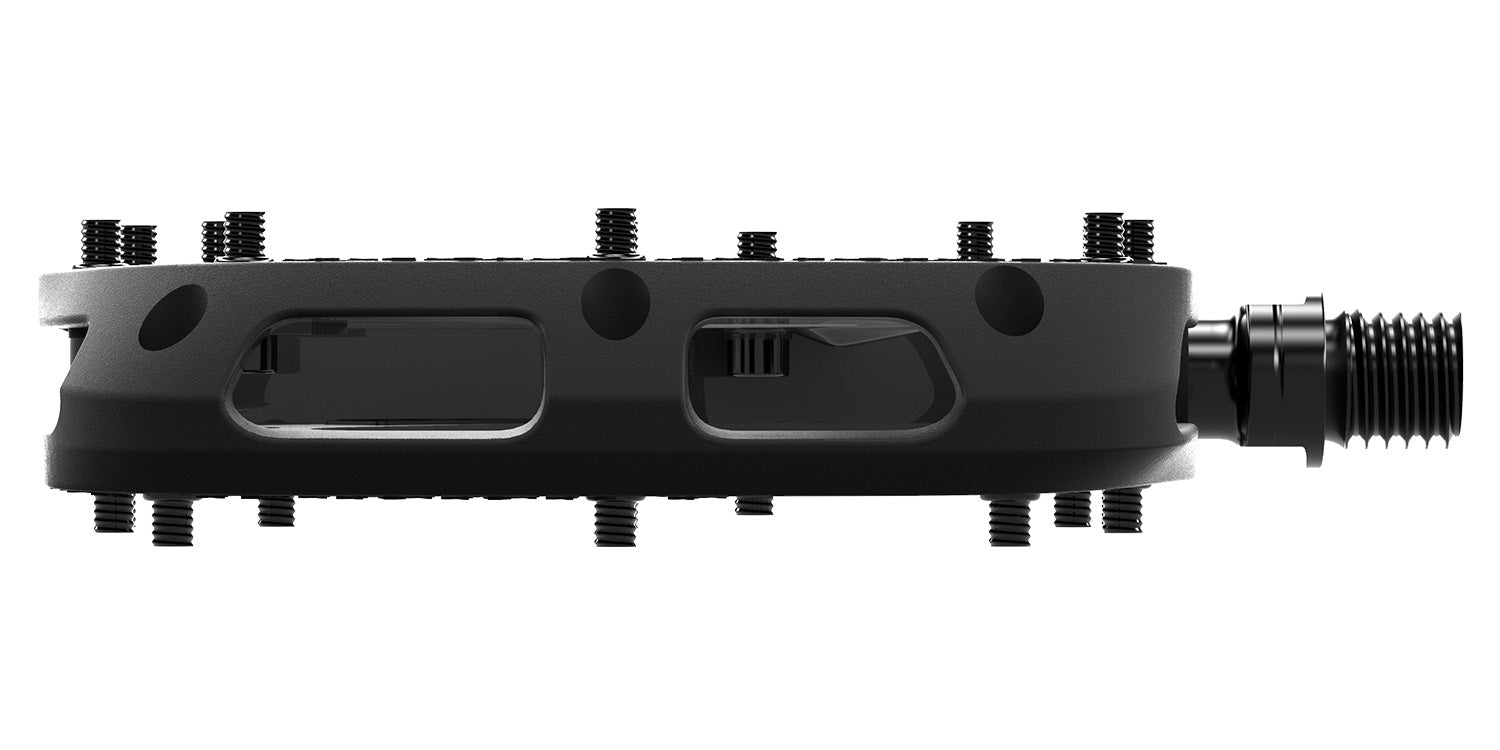

The slightly concave and outwardly rotated pedal surface allows an ergonomic position on the pedal and creates enormous grip at the same time. To provide a maximum pedaling surface, this closes flush with the pedal axle. This avoids an annoying increase in the pedal surface on the inside of the foot, as occurs with many other flat pedals.

Features:

+ Available in three different axis lengths

+ Adapted to the natural foot position

+ Large platform (115 x 105mm)

+ Fiber reinforced plastic

+ Japanese ball bearings

+ IGUS friction bushing Made in Germany

+ replaceable pins

Fit
The three different axle lengths provide a physiologically natural foot position on the pedal. Suitable for larger feet, a V-shaped foot position or larger sit bone distances, which usually require a higher Q-factor.

Ergonomic position
The slightly concave and outwardly rotated pedal surface allows an ergonomic position on the pedal and creates enormous grip at the same time.

Maximum surface
To provide a maximum pedaling surface, this closes flush with the pedal axle. This avoids an annoying increase in the pedal surface on the inside of the foot, as occurs with many other flat pedals.

Technical specifications at a glance
ARTICLE NUMBER(S)2525 / 2526 / 2527 AREA OF USE/BICYCLE TYPEMTB GRAVITY & E-PERFORMANCE
WEIGHT(S) IN G (PAIR)APPROX. 429 / 436 / 445
AXLE LENGTH(S) IN MM -5 / 0 / +5
DISTANCE CRANK TO PEDAL CENTER IN MM 60, 65, 70
PEDAL SURFACE IN MM 110X105 = 1155 (EFFEKTIV 1056)
MATERIAL PEDAL BODYPLASTIC 70% / GLASS FIBER 30%
MATERIAL PEDAL AXLE CRMO PIN HEIGHT IN MM 3
CURRENTLY LOOK OUT (10 LENGTH TOTAL) CLICK
SYSTEMFLAT FREEDOM OF MOVEMENT IN °-
E-BIKE READY YES, IF NOT WIDER THAN THE ORIGINAL PEDAL DIN/ASTM
CATEGORIES5

Scope of delivery:

1x pair SQlab pedal 5OX

3x spare pins

Axle lengths:

Small: Shoe size 36 - 40

Medium: Shoe size 41 - 45

Large: Shoe size 46 - 50
