SQlab 3OX 12° Handlebar

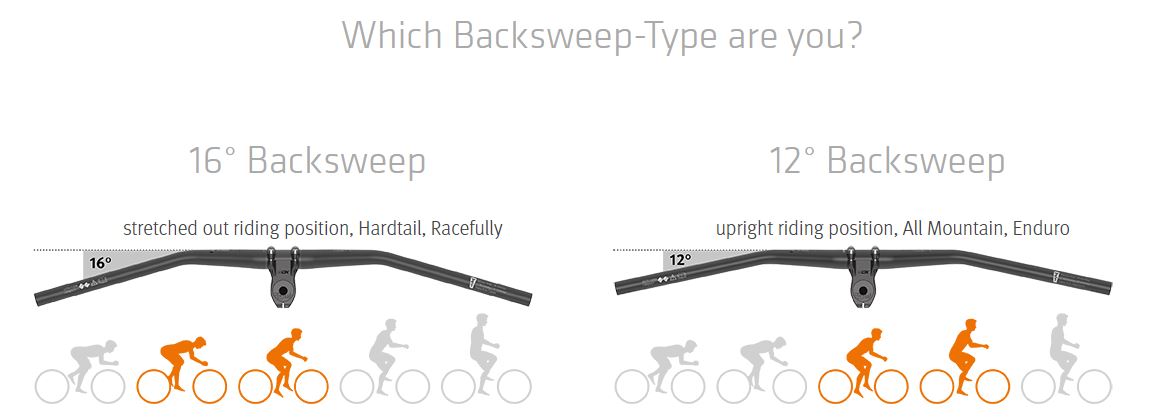

The 12° backsweep with its short reach provides a natural transition from the lower arm to the hand when in a more upright riding position thus protecting the wrist from the extreme strain occurring in downhill [riding].

​The 4° upsweep brings the elbows into a perfect position for a dynamic riding style.

The 15mm, 30mm or 45mm rise allow individualized positions.

31,8mm clamp diameter. 35mm shim available.

Passed the “Zedler End of Life” test with flying colors. The perfect combination of form, wall thickness and diameter with the corresponding anatomically optimized bend for various riding dynamics, currently make the new SQlab 30X handlebar series the most stable as well as the lightest bar in its field.

Detailed Specifications:

• AREA OF USE GRAVITY & ALL MOUNTAIN
• WEIGHT (G)APPROX. 325
• WIDTH IN (MM)780
• SHORTENED MAXIMUM WIDTH (MM)720
• RISE (MM) 15MM (LOW), 30MM (MED), 45MM (HIGH)
• BACKSWEEP (°)12
• UPSWEEP (°)4
• STRETCH (MM)0
• MATERIAL ALUMINIUM
• CLAMPING WIDTH OF THE STEM MIN. 46 MM – MAX. 58MM
