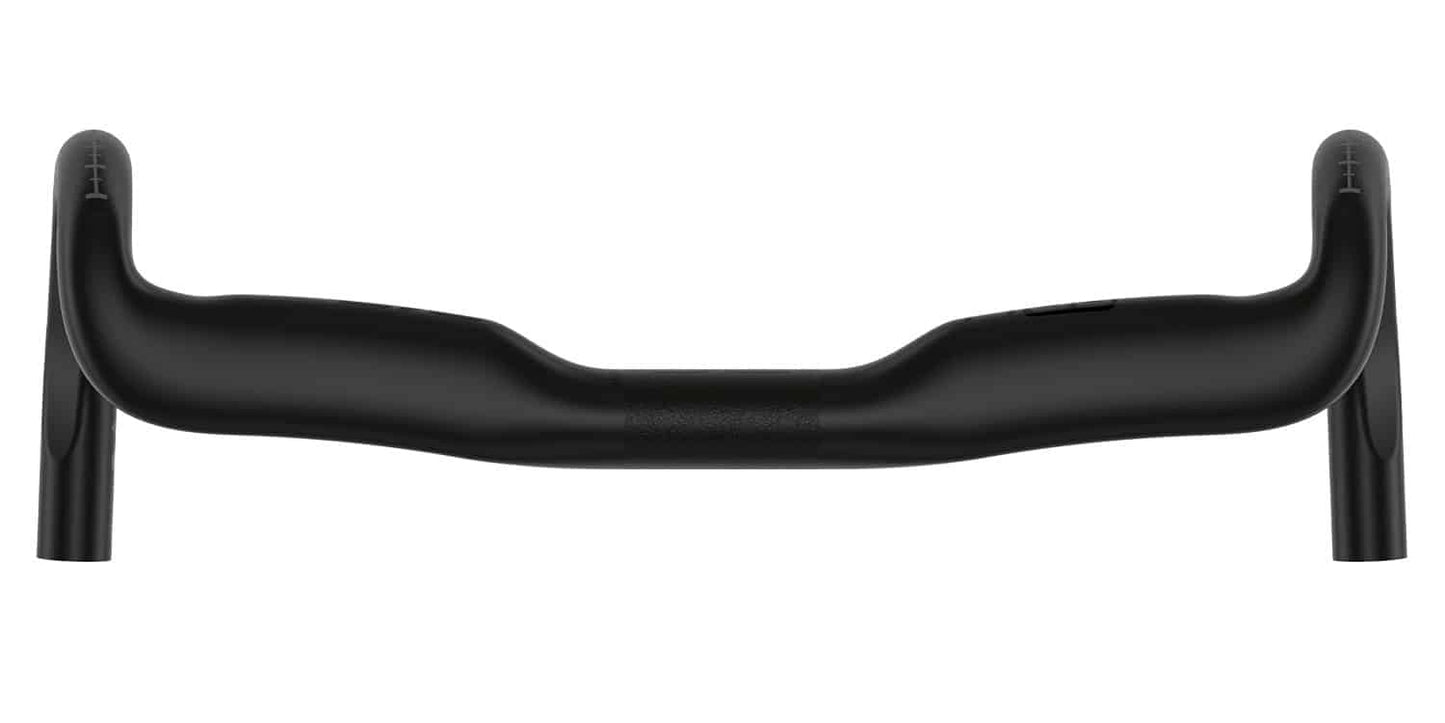

SQlab 312 R Carbon Handlebar

Ergonomic, lightweight and the first Road bike handlebar from SQlab. In terms of material processing, weight and durability, we have already been able to prove that we are amongst the world‘s best in the field of MTB handlebars. In contrast to our MTB handlebars a 10° frontsweep is used which decreases towards the end of the handlebar. All contact surfaces are optimized in every detail, such as the Ergobar at the bottom or the small cutout on the outside for the little fingers.

• Ergobar: The Ergobar is an wave-shaped elevation on the underside. This results in a flat, slightly angular underside of the handlebar. Fits perfectly to the angled, bent fingers.
• Maximum Surface: The area which is flattened at the top and extended far forward is maximally large. This allows the fingersto safely enclose the handlebar and at the same time provides grip.
• Grip Security: The combination of contact surface and freedom of movement ensure the best possible pressure distribution.
• Angular and Areal: Thanks to the flattened outer surface, the handlebar is also pleasant to grasp in the lower grip and at the same time provides a secure hold in various riding positions.
• Di2 ready

Detailed Specifications:

• WEIGHT (G)235
• WIDTH (MM) CENTER TO CENTER (C-C)380-440
• AREA OF USE ROAD RACE
• REACH (MM)80
• CLAMPING (MM)31.8
• RISE (MM)15
• DROP (MM)120
• ART COMPACT GEOMETRY WITH ANATOMIC DROP FRONTSWEEP (°)10° ZU 2°
• UP- / DOWNSWEEP (°)0
• MATERIAL CARBON
• CLAMPING WIDTH OF THE STEM MIN. 40MM - MAX. 58MM
