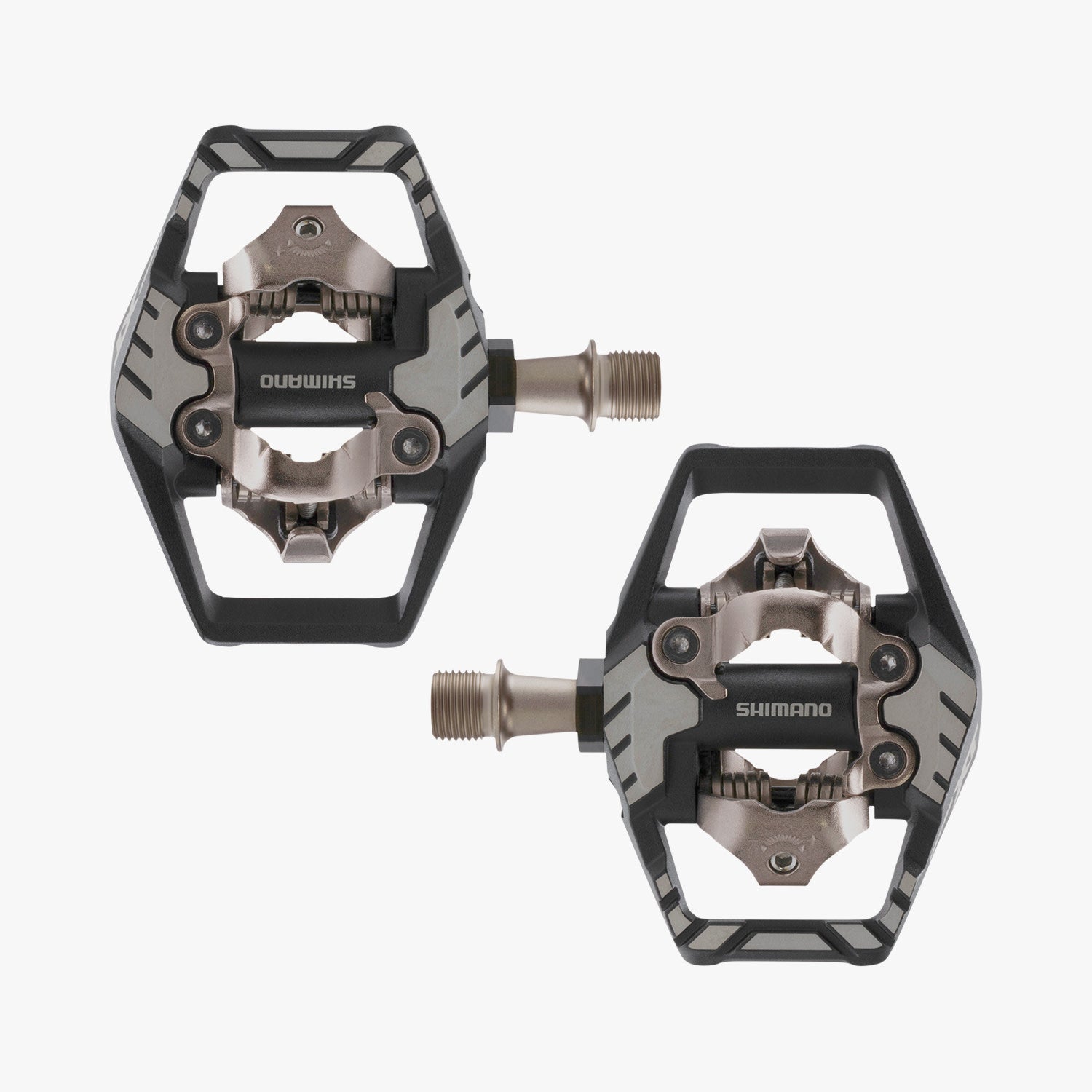

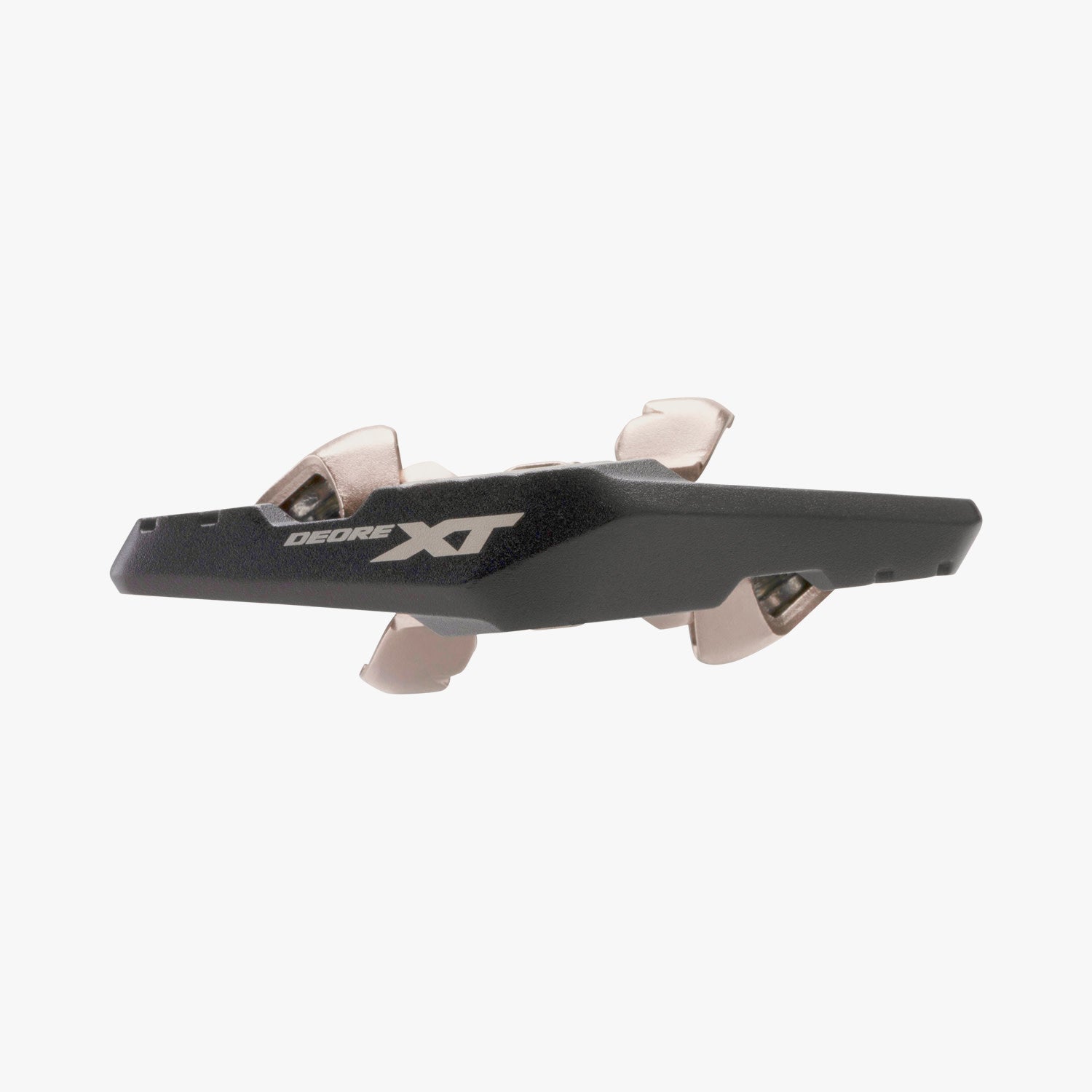

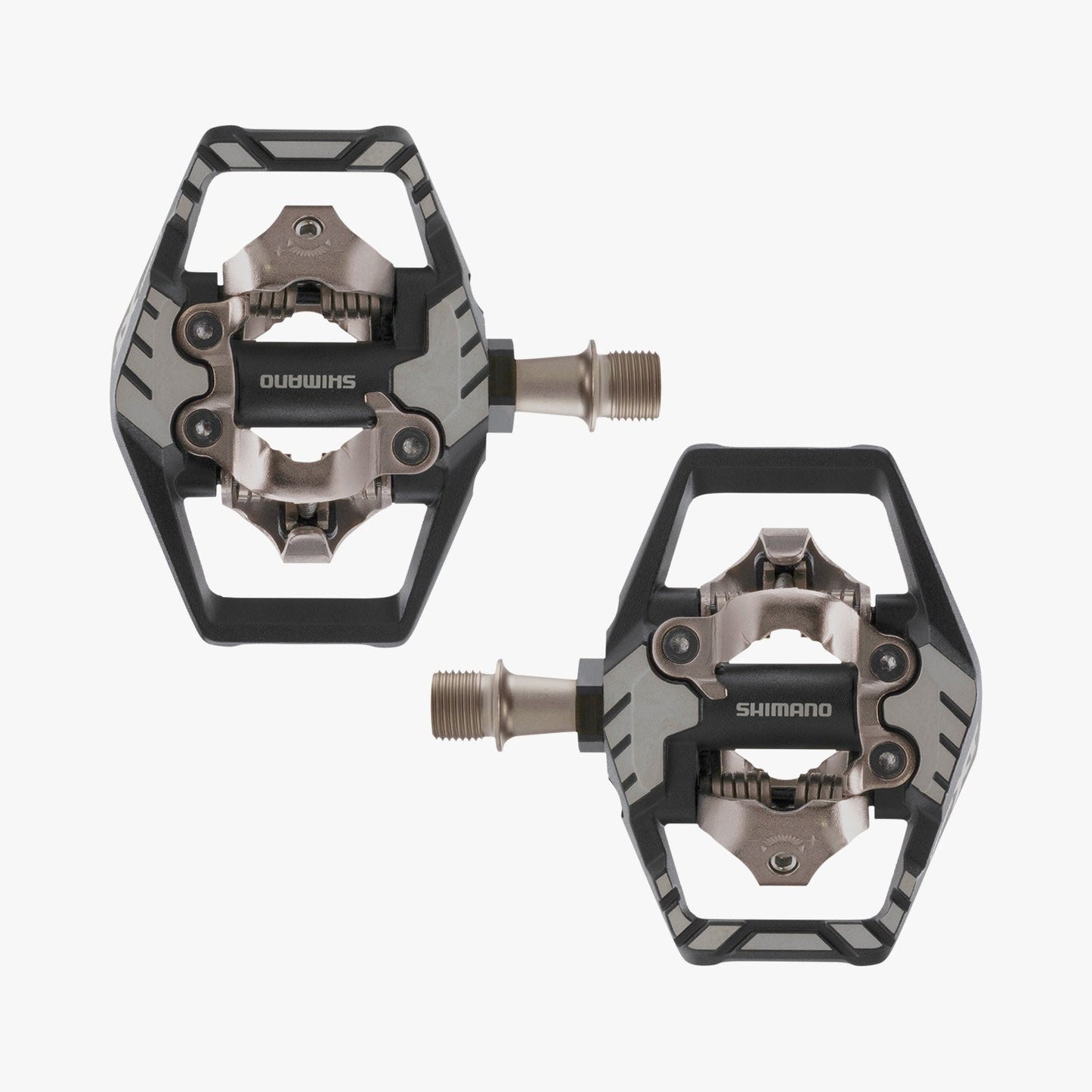

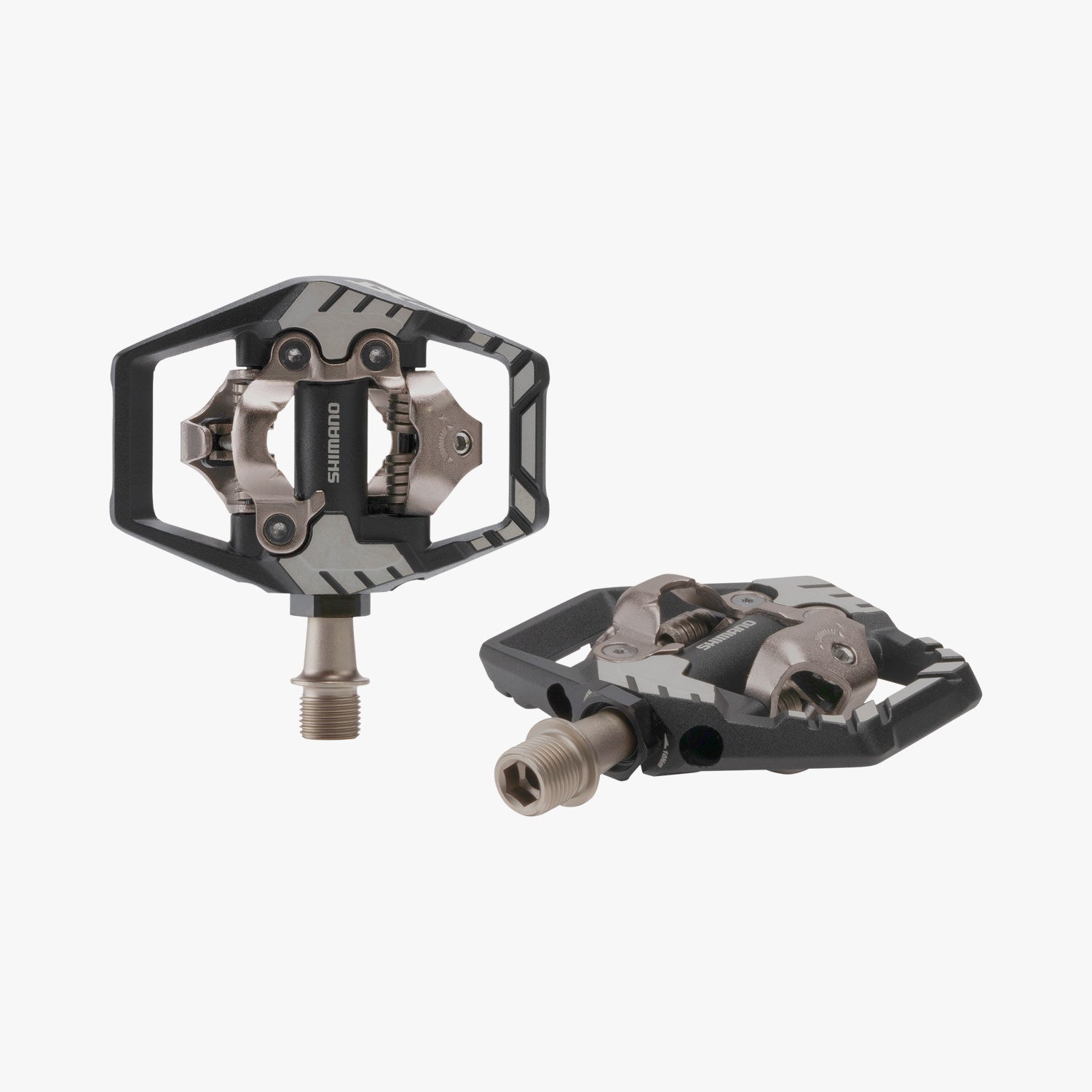

Shimano PD-M8120 DEORE XT Pedal - Trail

The Shimano XT PD-M8120 is a Trail and Enduro SPD Pedal: Engineered to enhance bike control on the gnarliest of trails.

Superior Bike Control

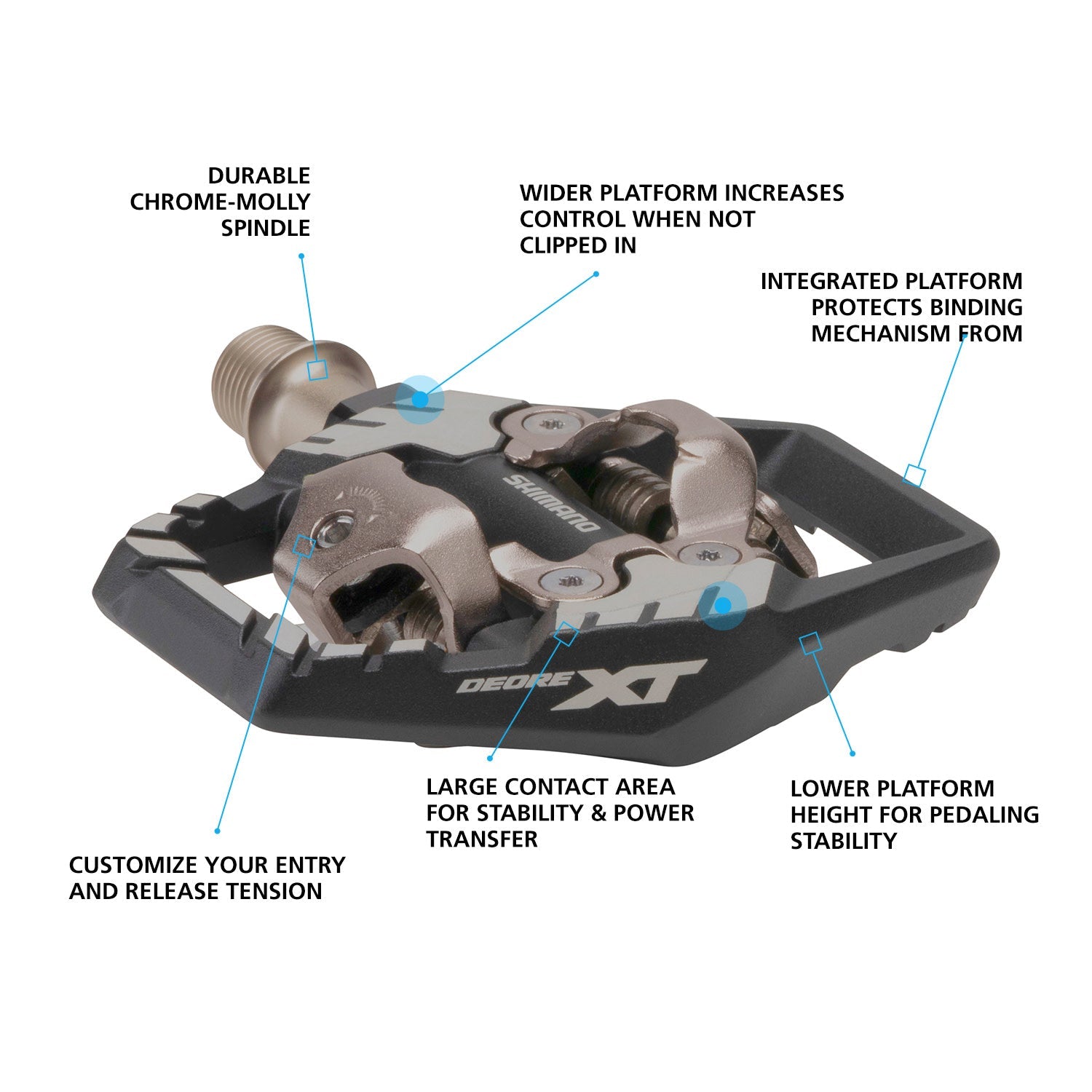

Optimal Pedaling Performance: Wide pedal-to-shoe contact area and lower platform height for pedaling stability and efficient transfer of power.

Smooth Engagement and Release: Retention claws and adjustable tension settings for smooth and reliable clipping in and out.

Control Even When Not Clipped In: Integrated cage increases stability and control when unclipped.

Robust Performance: Integrated cage protects against impacts and chrome-molly spindle is strong and durable.

SPD cleats included

You need a pedal that can handle the roughest terrain. An integrated cage on the PD-M8120 protects the binding mechanism against impacts like rock strike. The chrome-molly spindle is strong and durable, using an 8mm hex wrench mount. The retention claws are robust and ensure smooth engagement and release, however rough it gets.

PRODUCT SPECIFICATIONS:

MODEL NO    PD-M8120
SERIES    DEORE XT M8100 Series
Color    Series color
Average weight    438 ( /pair)
Remarks    1.0 mm cleat spacer included
Type    SPD
Binding    Dual sided
Cartridge axle    ✔
Sealed mechanism    ✔
Cleat retention adjuster    ✔
Integrated cage    ✔
Cleat included    SM-SH51
Optional cleat    SM-SH56
Reflector    SM-PD60
Stack height (mm)    16.2
Pedal center (mm)    55
