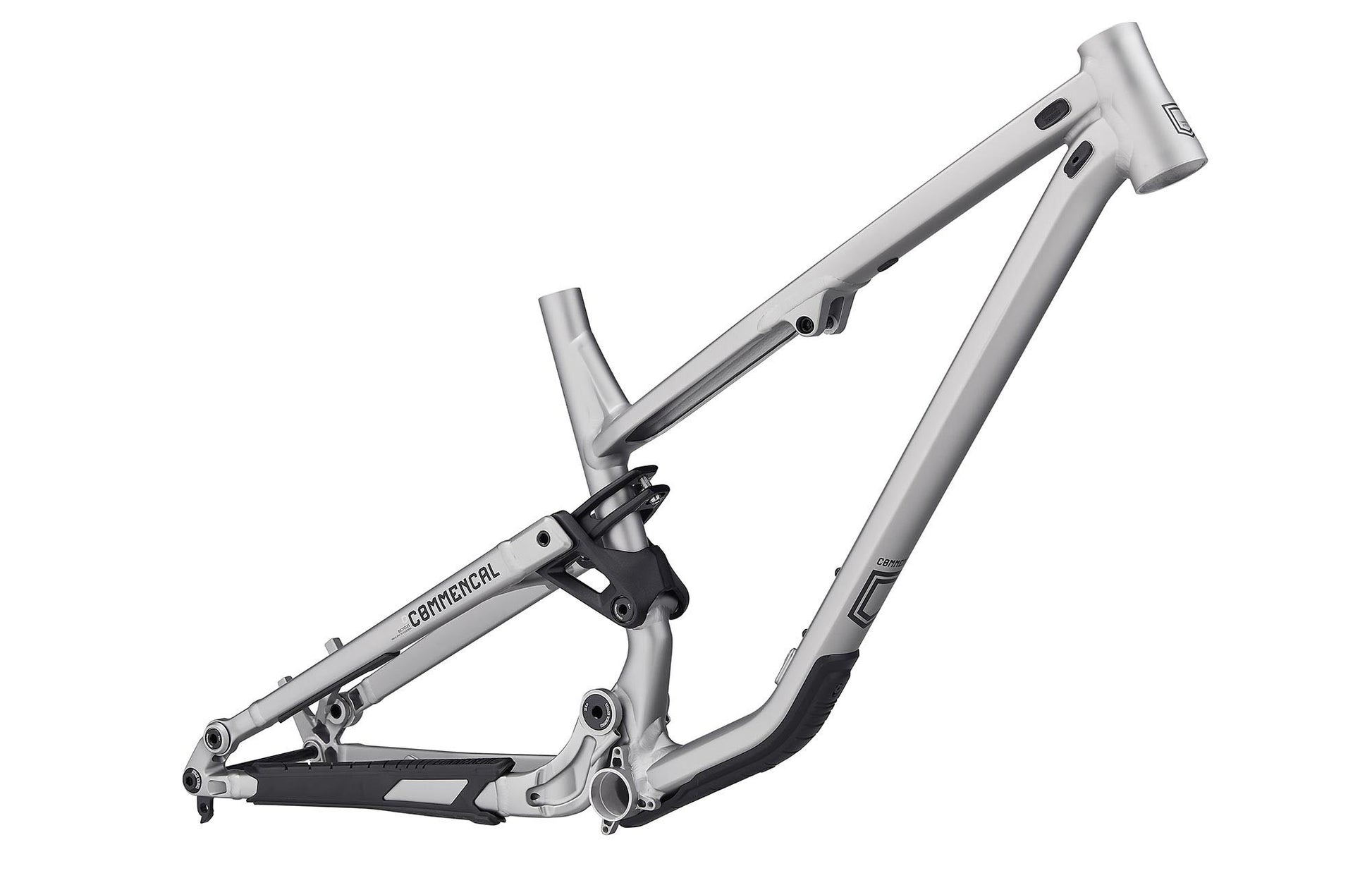

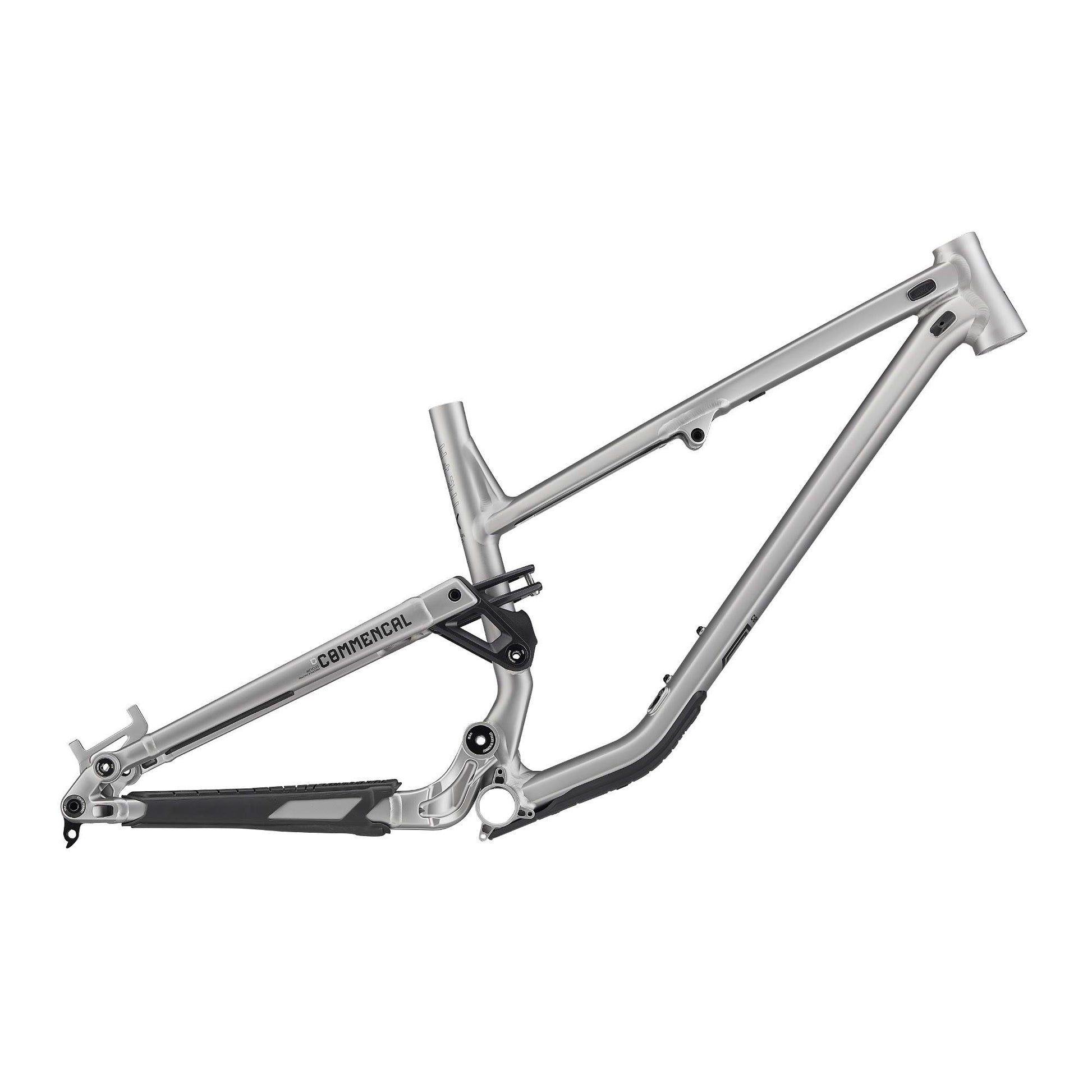

Commencal Meta SX Team 2022 Frame

New META SX - Mullet Mutation

We have been working on 29/27 ‘Mullet’ bikes for 3 years now with our different DH teams. This work has allowed us to understand that to transform a regular bike with the same sized wheels into a bike with different sized wheels, it isn’t effective to just throw a 27-inch wheel on the back. The geometry and kinematics of the bike must be completely reworked and it is thanks to this experience that we are now able to present the most successful version of the META V4 we’ve ever produced, the META SX!

Equipping this META SX with different sized 29/27-inch wheels is not the result of a trend that we’re following. Quite simply, this way the bike is much more balanced, specifically relating to grip on the front and back - the large 29-inch wheel on the front allows more confidence and rolling capacity whilst the 27.5-inch rear wheel offers more maneuverability and responsiveness.

The result is a bike that is more agile and easier in the steeps, more efficient under braking and more dynamic when pushing hard.

Detailed Specifications:

• BICYCLE TYPE ENDURO 27''/29''
• FRAME MATERIAL AL-6066
• FRAME WEIGHT 3,9 kg / 8.59 lb
• REAR WHEEL TRAVEL
• 160 mm
• SHOCK LENGTH / STROKE 230 x 62,5 mm
• PIGGY BACK SHOCK COMPATIBLE Yes
• SHOCK BUSHINGS 20 X 10 MM
• RECOMMENDED / MAX FORK HEIGHT 581 mm / 591 mm
• HEADSET DIMENSION Tapered 1-1/8" / 1-1/2"
• HEADSET TYPE ZS44/ZS56
• MAXIMUM TYRE DIMENSION (ETRTO) 68 mm
• DISC BRAKE STANDARD Postmount 200 mm
• REAR ROTOR MAX SIZE 220 mm
• SEATPOST / SEAT CLAMP DIAMETER 34,9 mm / 38,5 mm
• BOTTOM BRACKET TYPE Press Fit BB92
• ISCG ISCG05
• FRONT DERAILLEUR TYPE No
• REAR HUB COMPATIBILITY 12 x 148 mm
• ACCESSORIES Down tube protector, chainstay protector, seatstay protector, rear wheel axle.
• Pre cute anti noise foam tubes for derailleur hose / brake hose / dropper hose.
